| GENERAL | |
| Brand | Asrock |
| Barcode | 4710483944246 |
| Warranty | 2 |
| Processor | |
| Socket | AM5 |
| Chipset | AMD A620 |
| Supported Proccessors | Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors |
| VRM | 8+2+1 Power Phase, 60A Dr.MOS with Enlarged Heatsink Armor |
| Memory | |
| Memory Type | DDR5 |
| Storage | |
| Storage Interface(s) | 2x M.2, 2 x SATA 3 |
| Interfaces & Ports | |
| Back I/O Ports | 2 x Antenna Ports, 1 x HDMI Port, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks: Line in/Front Speaker/Microphone |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Internal I/O Ports | 2 x Addressable LED Headers, 2 x CPU/Water Pump Fan Connectors (4-pin), 1 x Chassis/Water Pump Fan Connector (4-pin), 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Panel Audio |
| USB | 1 x USB 3.2 Gen2 Type-C (Rear), 2 x USB 3.2 Gen2 Type-A (Rear), 1 x USB 3.2 Gen1 Type-A (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 2 x USB 3.2 Gen1 Type-A (Front), 4 x USB 2.0 (2 Rear, 2 Front) |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Physical Characteristics | |
| Form Factor | Mini-ITX |
| Dimensions | 24 × 9 × 19 სმ |

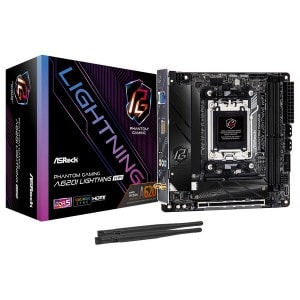

Asrock A620I Lightning WiFi AM5
