| GENERAL | |
| Part Number | ZM750-TMX |
| Warranty | 2 |
| COOLING | |
| Fan Size | 120 mm |
| PERFORMANCE | |
| MTBF | 100,000 Hours |
| INTERFACES & PORTS | |
| Connector(s) | Mainboard Cable (1) EPS Cable (2) PCI Express Cable (Connector 2ea) (2) IDE (Connector 3ea) + FDD (Connector 1ea) (1) S-ATA (2) |
| POWER | |
| Power Efficency | 90% |
| Combined Power | 750 watt |
| 80 Plus Rating | Gold |
| PFC Type | Active |
| Protection Functions | OCP/OTP/OPP/OVP/UVP/SCP |
| PHYSICAL CHARACTERISTICS | |
| Form Factor | ATX |
| Dimensions | 140 x 150 x 86 mm |
| Modularity | Yes |

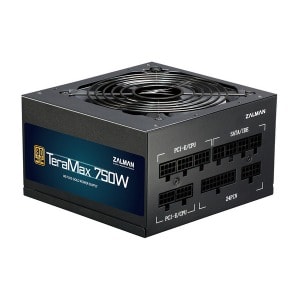

Zalman TeraMax Gold 750W
